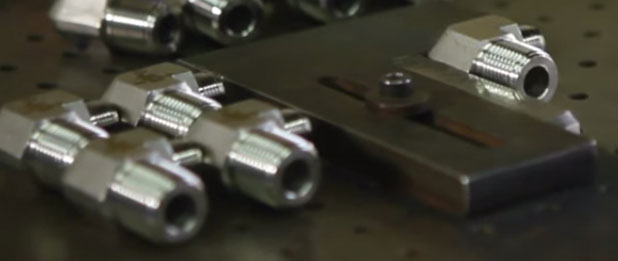

Female Branch Tee

Female Branch Tee

Female Branch Tee manufacturer

Female Branch Tee

Female Branch Tee

Imperial tubing

Tube O.D  inch

NPT   thread

Part Number

A

C

H

L

     W

     Min bore

inch

mm

inch

mm

inch

mm

inch

mm

 inch

inch

1/8

1/8

2FBT2N

2.00

50.80

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.09

3/16

1/8

3FBT2N

2.00

50.80

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.13

1/4

1/8

4FBT2N

2.16

54.86

1.08

27.43

0.75

19.05

0.78

19.81

9/16

0.19

1/4

1/4

4FBT4N

2.42

61.47

1.21

30.73

0.84

21.34

0.91

23.11

3/4

0.19

5/16

1/8

5FBT2N

2.26

57.40

1.13

28.70

0.75

19.05

0.84

21.34

9/16

0.25

3/8

1/4

6FBT4N

2.52

64.01

1.26

32.00

0.84

21.34

0.97

24.64

3/4

0.28

1/2

3/8

8FBT6N

2.82

71.63

1.41

35.81

0.91

23.11

1.03

26.16

7/8

0.41

1/2

1/2

8FBT8N

3.02

76.71

1.51

38.35

1.13

28.70

1.13

28.70

1.1/16

0.41

5/8

1/2

10FBT8N

3.02

76.71

1.51

38.35

1.13

28.70

1.13

28.70

1.1/16

0.50

3/4

3/4

12FBT12N

3.26

82.80

1.63

41.40

1.25

31.75

1.25

31.75

1.5/16

0.63

7/8

3/4

14FBT12N

3.26

82.80

1.63

41.40

1.25

31.75

1.25

31.75

1.5/16

0.75

1

3/4

16FBT12N

3.56

90.42

1.78

45.21

1.25

31.75

1.31

33.27

1.5/16

0.88

1

1

16FBT16N

4.00

101.60

2.00

50.80

1.50

38.10

1.53

38.86

1.5/8

0.88

Tube O.D  inch

NPT   thread

Part Number

A

C

H

L

    W

    Min bore

inch

mm

inch

mm

inch

mm

inch

mm

inch

inch

3

1/8

3MFBT1/8N

2.00

50.80

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.09

6

1/8

6MFBT1/8N

2.16

54.86

1.08

27.43

0.75

19.05

0.78

19.81

9/16

0.19

6

1/4

6MFBT1/4N

2.42

61.47

1.21

30.73

0.84

21.34

0.91

23.11

3/4

0.19

8

1/8

8MFBT1/8N

2.26

57.40

1.13

28.70

0.75

19.05

0.84

21.34

9/16

0.25

10

1/4

10MFBT1/4N

2.52

64.01

1.26

32.00

0.84

21.34

0.97

24.64

3/4

0.28

12

3/8

12MFBT3/8N

2.82

71.63

1.41

35.81

0.91

23.11

1.03

26.16

7/8

0.41

12

1/2

12MFBT1/2N

3.02

76.71

1.51

38.35

1.13

28.70

1.13

28.70

1.1/16

0.41

20

3/4

20MFBT13/4N

3.26

82.80

1.63

41.40

1.25

31.75

1.25

31.75

1.5/16

0.63

25

3/4

25MFBT13/4N

3.56

90.42

1.78

45.21

1.25

31.75

1.31

33.27

1.5/16

0.88

25

1

25MFBT1/1N

4.00

101.60

2.00

50.80

1.50

38.10

1.53

38.86

1.5/8

0.88
