Female Elbow

Female Elbow

Female Elbow manufacturer

Female Elbow

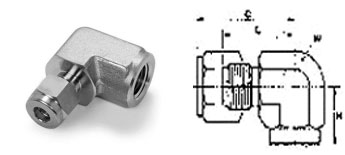

Female Elbow specification

Imperial Tubing

Tube O.D inch

NPT thread

Part
Number

C

H

L

W

Min bore
(inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) mm (inch)

1/16

1/16

1FE1N

0.70

17.8

0.56

14.2

0.56

14.2

7/16

0.05

1.3

1.3

1/16

1/8

1FE2N

0.80

20.3

0.75

19.1

0.66

16.8

9/16

0.05

1.3

1.3

1/8

1/8

2FE2N

0.97

24.6

0.75

19.1

0.72

18.3

9/16

0.09

2.3

2.3

1/8

1/4

2FE4N

1.09

27.7

0.84

21.3

0.84

21.3

3/4

0.09

2.3

2.3

3/16

1/8

3FE2N

1.00

25.4

0.75

19.1

0.75

19.1

9/16

0.13

3.3

3.3

1/4

1/8

4FE2N

1.08

27.4

0.75

19.1

0.78

19.8

9/16

0.19

4.8

4.8

1/4

1/4

4FE4N

1.21

30.7

0.84

21.3

0.91

23.1

3/4

0.19

4.8

4.8

1/4

3/8

4FE6N

1.43

36.3

0.84

21.3

1.13

28.7

1.1/16

0.19

4.8

4.8

1/4

1/2

4FE8N

1.43

36.3

1.13

28.7

1.13

28.7

1.1/16

0.19

4.8

4.8

5/16

1/8

5FE2N

1.10

27.9

0.75

19.1

0.81

20.6

9/16

0.25

6.4

6.4

5/16

1/4

5FE4N

1.23

31.2

0.88

22.4

0.94

23.9

3/4

2.25

6.4

6.4

3/8

1/8

6FE2N

1.13

28.7

0.75

19.1

0.84

21.3

9/16

0.28

7.1

7.1

3/8

1/4

6FE4N

1.26

32.0

0.84

21.3

0.97

24.6

3/4

0.28

7.1

7.1

3/8

3/8

6FE6N

1.32

33.5

0.84

21.3

1.03

26.2

7/8

0.28

7.1

7.1

3/8

1/2

6FE8N

1.42

36.1

1.13

28.7

1.13

28.7

1.1/16

0.28

7.1

7.1

1/2

1/4

8FE4N

1.35

34.3

0.84

21.3

0.97

24.6

3/4

0.41

10.4

10.4

1/2

3/8

8FE6N

1.41

35.8

0.91

23.1

1.03

26.2

7/8

0.41

10.4

10.4

1/2

1/2

8FE8N

1.51

38.4

1.13

28.7

1.13

28.7

1.1/16

0.41

10.4

10.4

5/8

3/8

10FE6N

1.41

35.8

0.91

23.1

1.03

26.2

7/8

0.50

12.7

12.7

5/8

1/2

10FE8N

1.51

38.4

1.13

28.7

1.13

28.7

1.1/16

0.50

12.7

12.7

3/4

1/2

12FE8N

1.54

39.1

1.13

28.7

1.16

29.5

1.1/16

0.63

16

16.0

3/4

3/4

12FE12N

1.63

41.4

1.25

31.8

1.25

31.8

1.5/16

0.63

16

16.0

1

1

16FE16N

2.00

50.8

1.50

38.1

1.53

38.9

1.5/18

0.88

22.4

22.4
Metric Tubing
Tube O.D
(mm)

NPT thread

Part Number

C

H

L

W
(inch)

Min bore
(mm)

(mm)

(mm)

(mm)

6

1/8

6MFE1/8N

27.3

19.1

19.8

9/16

4/8

6

1/4

6MFE1/4N

30.5

21.4

23.0

3/4

4/8

8

1/4

8MFE1/4N

31.3

22.2

23.8

3/4

6.4

10

1/4

10MFE1/4N

32.2

21.4

24.6

3/4

7.9

10

3/8

10MFE3/8N

33.8

23.0

26.2

7/8

7.9

12

1/4

12MFE1/4N

34.7

21.4

24.6

3/4

9.5

12

3/8

12MFE3/8N

36.3

23.0

26.2

7/8

9.5

12

1/2

12MFE1/2N

38.7

28.6

28.6

1.1/16

9.5

16

3/8

16MFE3/8N

36.3

21.3

26.2

7/8

12.7

16

1/2

16MFE1/2N

38.7

28.6

28.6

1.1/16

12.7
