Female Run Tee

Female Run Tee

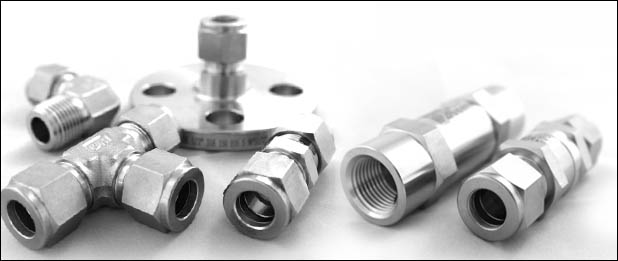

Female Run Tee manufacturer

Female Run Tee

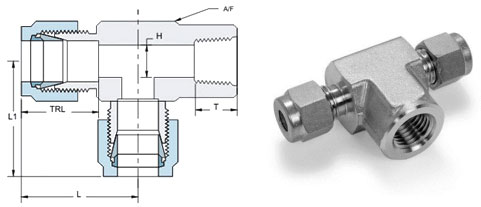

Female Run Tee specification

Imperial tubing

Tube O.D

NPT   thread

Part Number

A

C

H

L

W

Min. bore

inch

mm

inch

mm

inch

mm

inch

mm

inch

 inch

1/8

1/8

2FRT2N

1.75

44.45

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.09

3/16

1/8

3FRT2N

1.75

44.45

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.13

1/4

1/8

4FRT2N

1.83

46.48

1.08

27.43

0.75

19.05

0.78

19.81

9/16

0.19

1/4

1/4

4FRT4N

2.05

52.07

1.21

30.73

0.84

21.34

0.91

23.11

3/4

0.19

5/16

1/8

5FRT2N

1.85

46.99

1.10

27.94

0.75

19.05

0.81

20.57

9/16

0.25

3/8

1/4

6FRT4N

2.10

53.34

1.26

32.00

0.84

21.34

0.97

24.64

3/4

0.28

1/2

3/8

8FRT6N

2.32

58.93

1.41

35.81

0.91

23.11

1.03

26.16

7/8

0.41

1/2

1/2

8FRT8N

2.64

67.06

1.51

38.35

1.31

33.27

1.13

28.70

1.1/16

0.41

3/4

3/4

12FRT12N

2.88

73.15

1.63

41.40

1.25

31.75

1.25

31.75

1.5/16

0.63

7/8

1/2

14FRT8N

2.64

67.1

1.51

38.4

1.13

28.7

1.13

28.7

1.1/16

0.63

7/8

3/4

14FRT12N

2.88

73.2

1.63

41.4

1.25

31.75

1.25

31.75

1.5/16

0.75

1

3/4

16FRT12N

3.03

76.96

1.78

45.21

1.25

31.75

1.31

33.27

1.5/16

0.88

1

1

16FRT16N

3.50

88.90

2.00

50.80

1.50

38.10

1.53

38.86

1.5/8

0.88

Metric tubing

Tube O.D  mm

NPT   thread

Part Number

A

C

H

L

    W

Min. bore

inch

mm

inch

mm

inch

mm

inch

mm

 inch

inch

3

1/8

3MFRT1/8N

1.75

44.45

1.00

25.40

0.75

19.05

0.75

19.05

9/16

0.09

6

1/8

6MFRT1/8N

1.83

46.48

1.08

27.43

0.75

19.05

0.78

19.81

9/16

0.19

6

1/4

6MFRT1/4N

2.05

52.07

1.21

30.73

0.84

21.34

0.91

23.11

3/4

0.19

8

1/8

8MFRT1/8N

1.85

46.99

1.10

27.94

0.75

19.05

0.81

20.57

9/16

0.25

10

1/4

10MFRT1/4N

2.10

53.34

1.26

32.00

0.84

21.34

0.97

24.64

3/4

0.28

12

3/8

12MFRT3/8N

2.32

58.93

1.41

35.81

0.91

23.11

1.03

26.16

7/8

0.41

12

1/2

12MFRT1/2N

2.64

67.06

1.51

38.35

1.31

33.27

1.13

28.70

1.1/16

0.41

20

3/4

20MFRT3/4N

2.88

73.15

1.63

41.40

1.25

31.75

1.25

31.75

1.5/16

0.63

25

3/4

25MFRT3/4N

3.03

76.96

1.78

45.21

1.25

31.75

1.31

33.27

1.5/16

0.88

25

1

25MFRT1N

3.50

88.90

2.00

50.80

1.50

38.10

1.53

38.86

1.5/8

0.88
