Male Branch Tee

Imperial Tubing

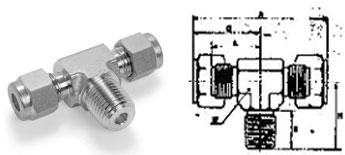

Tube O.D inch	NPT thread	Part Number	A		C		H		L		R		W inch	Min bore	Min. Bore
Tube O.D inch	NPT thread	Part Number	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	W inch	inch	inch	mm
1/8	1/8	2MBT2N	1.82	46.2	0.91	23.1	0.72	18.3	0.66	16.8	0.34	8.6	5/16	0.09	0.09	2.3
3/16	1/8	3MBT2N	1.88	47.8	0.94	24.6	0.75	19.1	0.69	17.5	0.38	9.7	7/16	0.13	0.13	3.3
1/4	1/8	4MBT2N	2.03	51.6	1.02	25.9	0.78	19.8	0.72	18.3	0.38	9.7	7/16	0.19	0.19	4.8
1/4	1/4	4MBT4N	2.15	54.6	1.08	27.4	0.94	23.9	0.78	19.5	0.56	14.2	9/16	0.19	0.19	4.8
5/16	1/8	5MBT2N	2.21	56.1	1.10	27.9	0.81	20.6	0.81	20.6	0.38	9.7	9/16	0.19	0.19	4.8
5/16	1/4	5MBT4N	2.21	56.1	1.10	27.9	1.00	25.4	0.81	20.6	0.56	14.2	9/16	0.25	0.25	6.4
3/8	1/4	6MBT4N	2.27	57.7	1.13	28.9	1.00	25.4	0.84	21.3	0.56	14.2	9/16	0.28	0.28	7.1
3/8	3/8	6MBT6N	2.53	64.3	1.26	32.0	1.13	28.7	0.97	24.6	0.56	14.2	3/4	0.28	0.28	7.1
1/2	3/8	8MBT6N	2.71	68.8	1.35	34.3	1.13	28.7	0.97	24.6	0.56	14.2	3/4	0.41	0.41	10
1/2	1/2	8MBT8N	2.83	71.9	1.41	35.8	1.31	33.3	1.03	26.6	0.75	19.1	7/8	0.41	0.41	10
5/8	1/2	10MBT8N	2.89	73.4	1.44	36.6	1.34	34.0	1.08	26.9	0.75	19.1	7/8	0.50	0.5	13
3/4	3/4	12MBT12N	3.09	78.5	1.54	39.1	1.50	38.1	1.16	29.5	0.75	19.1	1.1/16	0.63	0.63	16
7/8	3/4	14MBT12N	3.33	84.6	1.66	42.2	1.50	38.1	1.28	32.5	0.75	19.1	1.5/16	0.72	0.72	18
1	3/4	16MBT12N	3.56	90.4	1.78	45.2	1.66	42.2	1.31	33.3	0.75	19.1	1.5/16	0.72	0.72	18
1	1	16MBT16N	3.56	90.4	1.78	45.2	1.84	46.7	1.31	33.3	0.94	23.9	1.5/16	0.88	0.88	22
Metric Tubing
			Tube O.D mm	NPT thread	Part Number		A	C	H	L	R	W inch	Min bore mm
			Tube O.D mm	NPT thread	Part Number		mm	mm	mm	mm	mm	W inch	Min bore mm
			6	1/8	6MMBT1/8N		51.6	25.8	19.8	18.3	9.7	7/16	4.8
			6	1/4	6MMBT1/4N		54.6	27.3	23.8	19.8	14.2	9/16	4.8
			8	1/8	8MMBT1/8N		56.2	28.1	20.6	20.6	9.7	9/16	4.8
			8	1/4	8MMBT1/4N		56.2	28.1	25.4	20.6	14.2	9/16	6.4
			10	1/4	10MMBT1/4N		66.0	33.0	28.6	25.4	14.2	3/4	7.9
			10	3/8	10MMBT3/8N		66.0	33.0	28.6	25.4	14.2	3/4	7.9
			12	1/4	12MMBT1/4N		69.4	34.7	28.6	24.6	14.2	3/4	9.5
			12	3/8	12MMBT3/8N		69.4	34.7	28.6	24.6	14.2	3/4	9.5
			12	1/2	12MMBT1/2N		72.6	36.3	33.3	26.2	19.1	7/8	9.5
