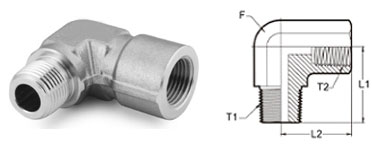

Street Elbow
PART NO. |
SIZE |
F A/F |
T1 NPT(M) |
T2 NPT(F) |
L1 |
L2 |
---|---|---|---|---|---|---|
1/8”X1/8” |
9/16” |
1/8” |
1/8” |
0.67 |
0.87 |
|
1/4”X1/4” |
11/16” |
1/4” |
1/4” |
0.98 |
0.75 |
|
3/8”X3/8” |
7/8” |
3/8” |
3/8” |
1.02 |
1.02 |
|
1/2”X1/2” |
1-1/16” |
1/2” |
1/2” |
1.34 |
1.22 |
|
3/4”X3/4” |
1-1/4” |
3/4” |
3/4” |
1.57 |
1.22 |
|
1”X1” |
1-5/8” |
1” |
1” |
1.97 |
1.81 |
