Bulkhead Union manufacturer

Divine Metal’s premium collection of instrumentation tube fittings are ideal for a diverse range of industries, including process oil and gas, petrochemical, power generation, military, pharmaceutical, and more. Divine Metal is your superior alternative to Swagelok fittings & Parker A-lok. Components are fully interchangeable with Swagelok. We offer an assortment of Bulkhead Union & all instrumentation compression tube fittings in a range of corrosion resistant alloy materials, including 316 Stainless Steel, 6Mo, Alloy 400, Alloy 825, Alloy 625, Copper, Brass, Titanium and more.

Contents:

About Divine Metal Bulkhead Union

The Bulkhead Union is used to transition through the wall of a control box or machine member. The Bulkhead Union permits a smooth transition point from one side to another. The all metal body adds rigidity and strength while the full threaded body allows for a degree of positioning through the wall. Same reliable push-in tube fittings hold the tube and allows quick release if required.

Divine Metal Bulkhead Union are manufactured in Stainless steel and Alloy steel grades. Most poplular stainless steel grades include Stainless steel 304 & Stainless steel 316. Alloy steel grades include , Monel, Inconel, Alloy 600 & 825, Hastelloy 276, Duplex Steel , Super Duplex Steel, 254 SMO etc. Ferrule fittings are also manufactured in copper & brass.

Divine Metal Ferrule fitting are manufactured to sustain high pressures of upto 6000 psig. Fittings come with a product replacement warranty of 1 year and have inclusive Mill test certificate by Divine Metal.

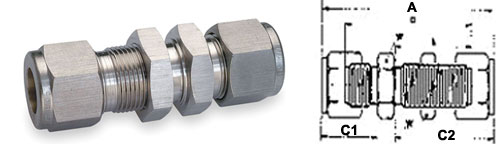

Bulkhead Union spcification

Imperial tubing
Tube O.D inch Part Number A C1 C2 D L W inch B’head hole drill size Max b’head thickness Min bore
inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm
1/16 1BU1 1.22 31.0 0.43 10.9 0.67 17.0 0.94 23.9 0.53 13.5 5/16 13/64 5.2 0.12 3.1 0.05 1.3
1/8 2BU2 2.00 50.8 0.60 15.2 1.22 31.0 1.50 38.1 0.97 24.6 1/2 21/64 8.3 0.50 12.7 0.09 2.3
3/16 3BU3 2.09 53.1 0.63 16.0 1.25 31.8 1.59 40.4 1.00 25.4 9/16 25/64 9.9 0.50 12.7 0.13 3.3
1/4 4BU4 2.28 57.9 0.70 17.8 1.33 33.8 1.69 42.3 1.03 26.2 5/8 29/64 11.5 0.40 10.2 0.19 4.8
5/16 5BU5 2.40 61.0 0.73 18.6 1.41 35.8 1.81 46.0 1.12 28.5 11/16 33/64 13.1 0.44 11.2 0.25 6.4
3/8 6BU6 2.47 62.7 0.76 19.3 1.45 36.8 1.88 47.8 1.16 29.5 3/4 37/64 14.7 0.44 11.2 0.28 7.1
1/2 8BU8 2.77 70.4 0.86 21.8 1.63 41.4 2.00 50.8 1.25 31.8 15/16 49/64 19.4 0.50 12.7 0.41 10.4
5/8 10BU10 2.83 71.9 0.86 21.8 1.66 42.2 2.06 52.3 1.28 32.5 1.1/16 57/64 22.6 0.50 12.7 0.50 12.7
3/4 12BU12 3.08 78.2 0.86 21.8 1.85 47.0 2.31 58.7 1.47 37.3 1.3/16 1.1/64 25.8 0.66 16.8 0.63 16.0
7/8 14BU14 3.30 83.8 0.86 21.8 2.07 52.6 2.53 64.3 1.69 42.9 1.3/8 1.9/64 29.0 0.75 19.1 0.75 19.1
1 16BU16 3.75 95.3 1.04 26.4 2.25 57.2 2.81 71.4 1.78 45.2 1.5/8 1.21/64 33.7 0.75 19.1 0.88 22.4
Metric tubing
Tube O.D mm Part Number A C1 C2 D L W inch B’head hole
drill size
mm		 Max b’head thichness mm Min bore
mm mm mm mm mm mm
3 3MBU 51.3 15.3 31.2 38.2 24.6 1/2 8.3 12.7 2.4
4 4MBU 53.7 16.1 32.0 40.5 25.4 9/16 9.9 12.7 3.0
6 6MBU 57.9 17.7 33.7 42.9 26.2 5/8 11.5 10.2 4.8
8 8MBU 61.0 18.6 36.0 46.0 28.5 11/16 13.1 11.2 6.4
10 10MBU 63.6 19.5 37.0 48.4 29.4 13/16 16.3 11.2 7.9
12 12MBU 71.0 22.0 41.9 50.8 31.8 15/16 19.5 12.7 9.5
16 16MBU 72.6 22.0 42.6 52.4 32.5 1.1/16 22.5 12.7 12.7
18 18MBU 78.9 22.0 47.4 58.7 37.3 1.3/16 26.0 16.8 15.1

Bulkhead Union features

Features the Divine Metal® tube fitting has been specifically designed for use on instrumentation, process and control systems, analyzers, and environmental equipment employed in chemical, petroleum, power generation, and pulp and paper plants. Divine Metal® tube fittings have also been used extensively in other applications and industries wherever high reliability and quality are required.

Bulkhead Union benefits

  • Bulkhead Union are fully interchangeable with Swagelok.
  • Manufactured to an ASME Quality Certificate SPC is a feature of the QA process.
  • High quality silver plated threads on nuts to ensure no galling on the body threads.
  • Divine Metal Suparcase Ferrule for corrosion resistance.
  • Gaugeable Bodies.
  • Tube fittings supply with DIN, ISO, EN, SAE, MA certificate
  • Zero leakage even under tough working conditions
  • Good high-pressure/corrsion/extreme temperature resistance
  • Simple to operate and save time and cost because of the usage of elastic seal
  • Widely used throughout the world
  • It can be reused.
  • Leak-proof joints capable of satisfying high pressure vacuum and vibration application
