Manufacturer of Union Tee, Reducing Union, Bulkhead Union, Union, Union Elbow, Union Cross in India

Manufacturer, stockist & suppliers of 304 stainless steel Union Tee, ss 304/316 Reducing Union, ss 304/316 Bulkhead Union, Union, Union Elbow, Union Cross

Divine Metal’s premium collection of instrumentation tube fittings are ideal for a diverse range of industries, including process oil and gas, petrochemical, power generation, military, pharmaceutical, and more. Divine Metal is your superior alternative to Swagelok fittings & Parker A-lok. Components are fully interchangeable with Swagelok. We offer an assortment of Union Tee & all instrumentation compression tube fittings in a range of corrosion resistant alloy materials, including 316 Stainless Steel, 6Mo, Alloy 400, Alloy 825, Alloy 625, Copper, Brass, Titanium and more.

Contents:

About Divine Metal Union Tee

Ferrule Fitting of high quality and precision finishing are manufactured by Divine Metal are are sold under our brand Divine Metal Ferrule Fitting. We manufacture both single ferrule and double ferrule fittings. Popular brands include Swagelok and Parker. Divine Metal Union Tee is fully interchangeable with Swagelok & Alok fittings.

Divine Metal Ferrule fitting are manufactured in Stainless steel and Alloy steel grades. Most poplular stainless steel grades include Stainless steel 304 & Stainless steel 316. Alloy steel grades include , Monel, Inconel, Alloy 600 & 825, Hastelloy 276, Duplex Steel , Super Duplex Steel, 254 SMO etc. Ferrule fittings are also manufactured in copper & brass.

Divine Metal Ferrule fitting are manufactured to sustain high pressures of upto 6000 psig. Fittings come with a product replacement warranty of 1 year and have inclusive Mill test certificate by Divine Metal.

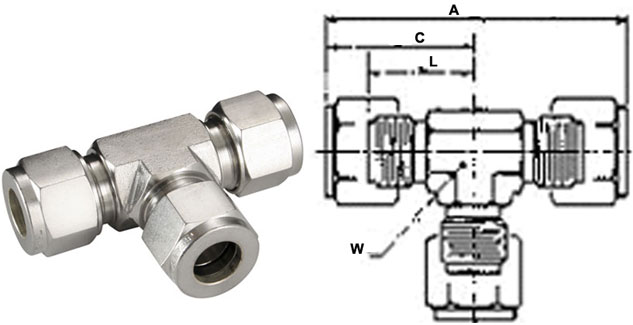

Union Tee

Imperial Tubing
Tube O.D
(inch)		 Part Number A C L W
(inch)		 Min. bore
inch mm inch mm inch mm inch mm
1/16 1UT1 1.40 35.6 0.70 17.8 0.56 14.2 5/16 0.05 1.3
1/8 2UT2 1.82 46.2 0.91 23.1 0.66 16.8 5/16 0.09 2.3
3/16 3UT3 1.88 47.8 0.94 24.9 0.69 17.5 7/16 0.13 3.3
1/4 4UT4 2.03 51.6 1.02 25.9 0.72 18.3 7/16 0.19 4.8
5/16 5UT5 2.21 56.1 1.10 27.9 0.81 20.6 9/16 0.25 6.4
3/8 6UT6 2.27 57.7 1.13 28.7 0.84 21.3 9/16 0.28 7.1
1/2 8UT8 2.71 68.8 1.35 34.3 0.97 24.6 3/4 0.41 10.4
5/8 10UT10 2.89 73.4 1.44 36.6 1.06 26.9 7/8 0.50 12.7
3/4 12UT12 3.09 78.5 1.54 39.1 1.16 29.5 1.1/16 0.63 16.0
7/8 14UT14 3.33 84.6 1.66 42.2 1.28 32.5 1.5/16 0.75 19.1
1 16UT16 3.56 90.4 1.78 45.2 1.31 33.3 1.5/16 0.88 22.4
Metric Tubing
Tube O.D
(mm)		 Part Number A C L W Min. bore
(mm)
mm mm mm inch
3 3MUT 46.6 23.3 16.7 5/16 2.4
4 4MUT 48.2 24.1 17.5 5/16 3.0
6 6MUT 51.6 25.8 18.3 7/16 4.8
8 8MUT 56.2 28.1 20.6 9/16 6.4
10 10MUT 66.0 33.0 25.4 3/4 7.9
12 12MUT 69.4 34.7 24.6 3/4 9.5
16 16MUT 74.2 37.1 27.0 7/8 12.7
18 18MUT 79.0 39.5 29.4 1.1/16 15.1
20 20MUT 85.2 42.6 32.5 1.5/16 15.9
25 25MUT 91.2 45.6 33.3 1.3/8 22.2

Cities where we have our sales representative who can help you to buy  Union Tee: Mumbai, Bengaluru, Chennai, New Delhi, Pimpri-Chinchwad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Pune, Kolkata, Gurgaon, Navi Mumbai, Ahmedabad, Tehran, Calgary, Noida, Riyadh, Vadodara, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Thane, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, Surat, Bhopal, Ulsan, Faridabad, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Countries where we export Union Tee regularly: India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

Union Tee features

Features the Divine Metal® tube fitting has been specifically designed for use on instrumentation, process and control systems, analyzers, and environmental equipment employed in chemical, petroleum, power generation, and pulp and paper plants. Divine Metal® tube fittings have also been used extensively in other applications and industries wherever high reliability and quality are required.

1).Metric Adapter
Mertic Flat Seal Fittings                                           Metric Standpipe Straight Fittings JIS
Metric 60°Cone Seal Fittings                                  Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings             Metric 24°Cone O-RING Seal H.T.Fittings

2). British Adapter
BSP O-RING Seal Fittings                                        BSP Flat Seal Fittings
BSP Multiseal Fittings                                               BSP 60°Cone Seal Fittings
BSPT Fittings JIS

3). American Adapter
SAE O-RING Seal Fittings                                      ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings                                   JIC 74°Cone Seal Fittings
NPTF Fittings                                                          SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings

Union Tee benefits

  • Union Tee are fully interchangeable with Swagelok.
  • Manufactured to an ASME Quality Certificate SPC is a feature of the QA process.
  • High quality silver plated threads on nuts to ensure no galling on the body threads.
  • Divine Metal Suparcase Ferrule for corrosion resistance.
  • Gaugeable Bodies.
  • Tube fittings supply with DIN, ISO, EN, SAE, MA certificate
  • Zero leakage even under tough working conditions
  • Good high-pressure/corrsion/extreme temperature resistance
  • Simple to operate and save time and cost because of the usage of elastic seal
  • Widely used throughout the world
  • It can be reused.
  • Leak-proof joints capable of satisfying high pressure vacuum and vibration application

Union Tee price

Cities where we have our sales representative who can help you to buy Swagelok SS-300-3 equivalent Divine 3UT3: Mumbai, Bengaluru, Chennai, New Delhi, Pimpri-Chinchwad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Pune, Kolkata, Gurgaon, Navi Mumbai, Ahmedabad, Tehran, Calgary, Noida, Riyadh, Vadodara, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Thane, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, Surat, Bhopal, Ulsan, Faridabad, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Countries where we export Swagelok SS-300-3 equivalent Divine 3UT3 regularly: India, United States, United Arab Emirates, Canada, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Saudi Arabia, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Angola, Argentina, Austria, Azerbaijan, Bangladesh, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

Double Ferrule compression Fittings Tubes To Union :

Union Tee - UT Union Tee – UT Reducing Union - RU Reducing Union – RU

Bulkhead Union - BU Bulkhead Union – BU UNION - U Union – U

Union Elbow - UE Union Elbow – UE Union Cross - UC Union Cross – UC
